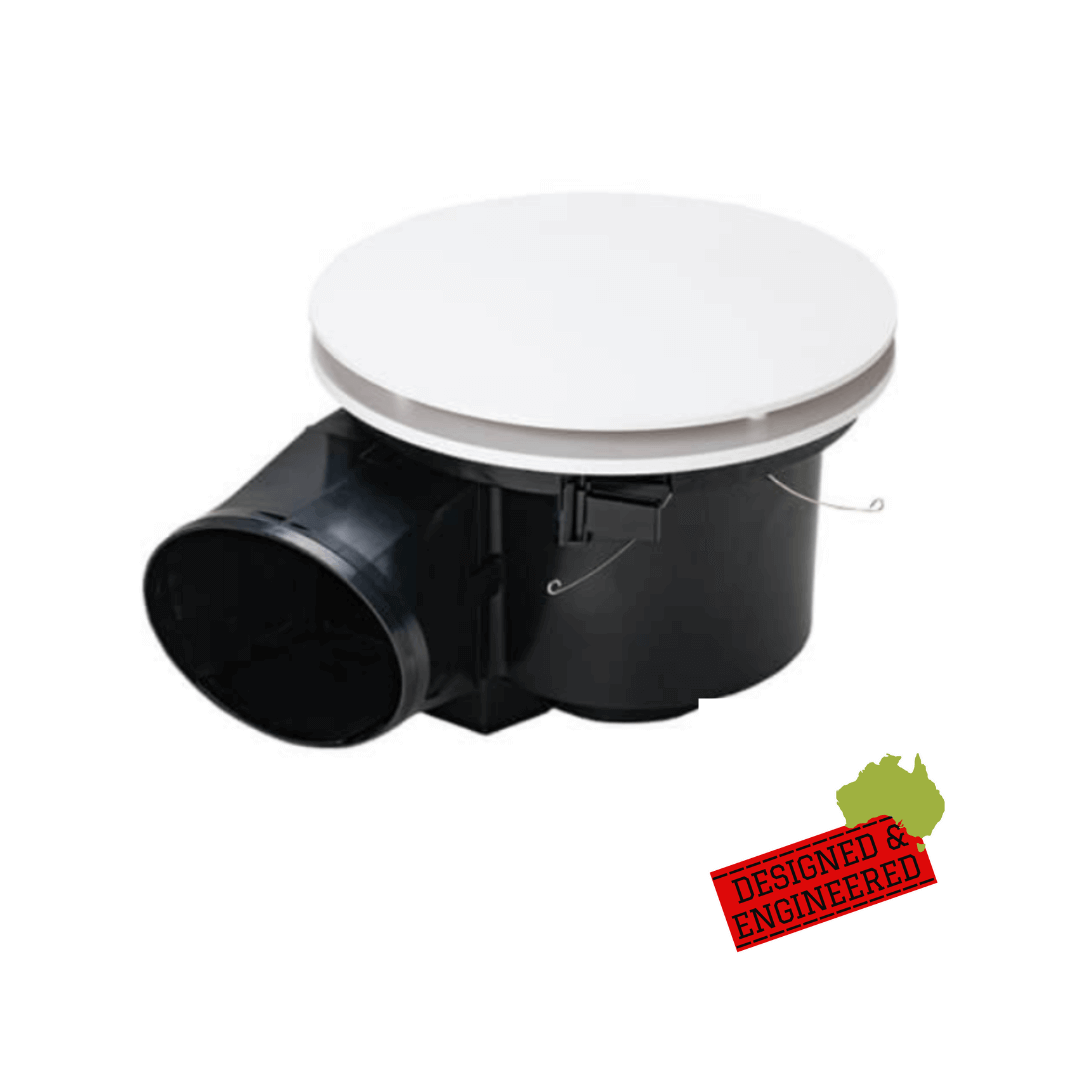

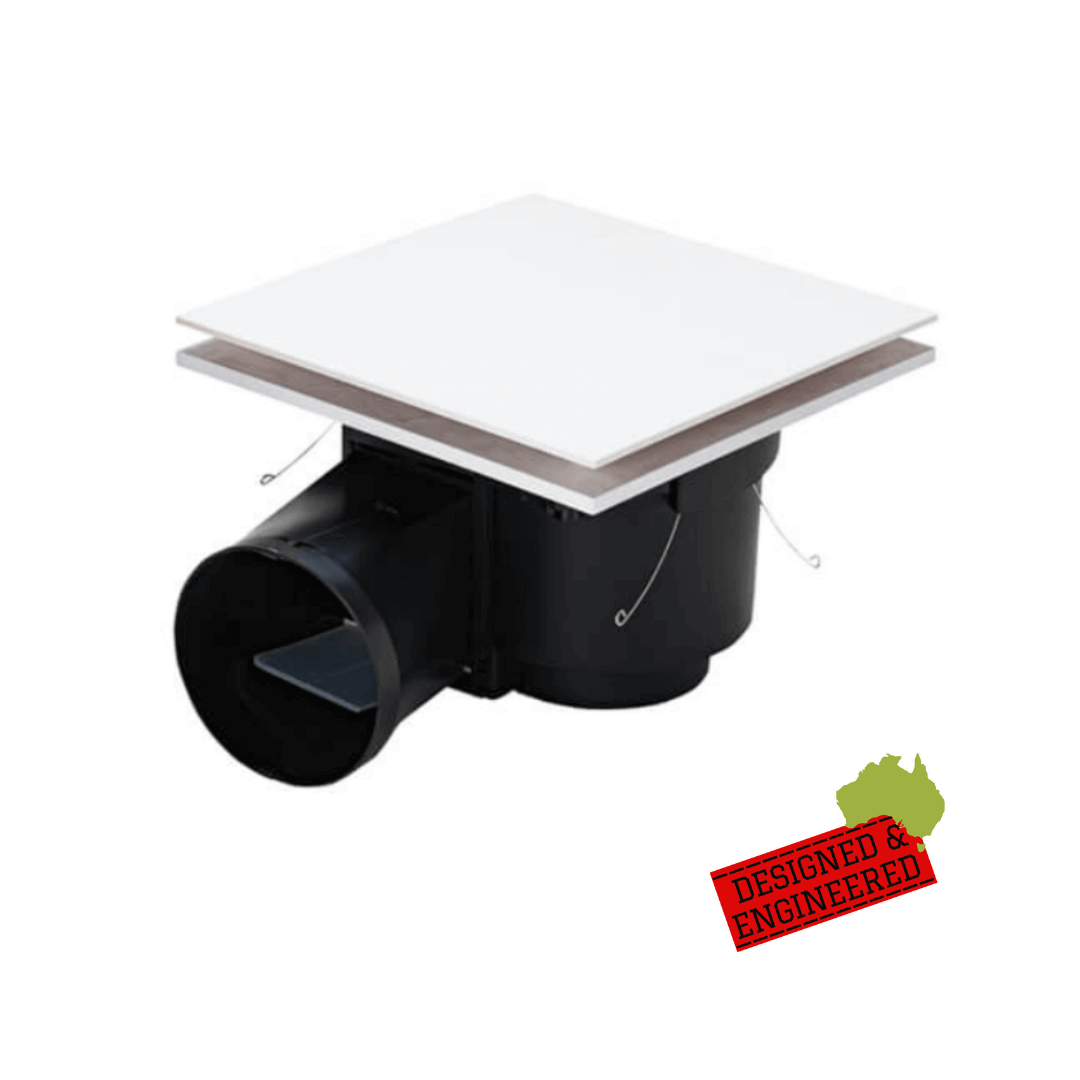

Headerbox Fan – Timer

Product Code: CF250HPT

Headerbox fan with run-on timer option: A high-power fan that delivers excellent airflow while maintaining a quiet operation. It features a fully optimized inlet cone and a centrifugal impeller, designed to maximize air pressure and efficiency.

It quickly clears the area of steam and unwanted or unpleasant odours. This easy-to-install 10” round cut-out model is equipped with a removable spigot and a unique swing clip for added convenience.

Model:

Quantity:

Add To Quote

Advanced impeller for powerful airflow
Designed with cutting-edge technology, the advanced impeller ensures a strong, consistent airflow, improving air circulation and ventilation in any environment. It’s engineered to optimize performance and efficiency, keeping your space comfortable and well-ventilated.
Smart design and engineering to minimize noise
Our fan’s design incorporates precision engineering to minimize operational noise, ensuring quiet performance without sacrificing power. Ideal for environments where noise reduction is a priority, it delivers high airflow with minimal disruption.
Robust swing clips with fitted plug and lead for easy installation
Installation is hassle-free with our durable swing clips, which are designed to securely hold the fan in place. The fitted plug and lead simplify the process, making it quick and easy to get the fan up and running without professional assistance.
Low-resistance, one-way dampers to maximize airflow performance
Equipped with low-resistance, one-way dampers, the fan maximizes airflow efficiency by preventing backdrafts. This design optimizes air movement, allowing the fan to perform at its highest capacity, even in challenging conditions.
Easy to maintain and clean with a removable diffuser
Designed for convenience, the fan features an easy-to-remove diffuser, allowing for quick access when cleaning or maintaining the unit. This reduces downtime and ensures the fan continues to operate efficiently for longer periods.
Compatible with standard 10” round fan cut-outs for hassle-free retrofitting
With its standard 10” round cut-out size, this fan is easy to retrofit into existing installations, making upgrades or replacements simple without the need for major modifications. This flexibility ensures a perfect fit in a wide range of environments.
Adjustable run-on timer available as an option
For added convenience, our fan comes with an optional adjustable run-on timer, allowing you to set the fan to continue running for a specific period after the main system has shut off. This feature ensures effective ventilation even after the primary operation is completed.
Durable construction with housing and diffuser made from injected moulded polypropylene
Both the housing and diffuser are made from high-quality injected moulded polypropylene, offering superior durability, corrosion resistance, and long-lasting performance. This rugged construction is designed to withstand the demands of continuous use in tough conditions.
Forward-curve centrifugal fan with squirrel cage induction motor
The fan is powered by a forward-curve centrifugal fan paired with a reliable squirrel cage induction motor, providing strong, consistent airflow. This combination ensures high efficiency and low energy consumption while maintaining excellent performance.
Electrical supply: 230V, single-phase, 50Hz
Compatible with standard electrical systems, the fan operates on 230V, single-phase power at 50Hz. This makes it easy to integrate into a wide range of applications and locations.
NMB ball bearings sealed for life
Equipped with high-quality NMB ball bearings that are sealed for life, the fan operates smoothly and quietly over an extended lifespan, reducing the need for maintenance or replacement of moving parts.
Copper windings with a 50,000-hour operational lifespan
The motor features copper windings, which are known for their high conductivity and durability. With a 50,000-hour operational lifespan, this fan is built to provide reliable service for years, minimizing downtime and maintenance costs.

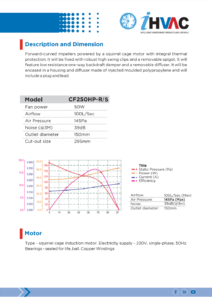

Headerbox Fan_iHVAC

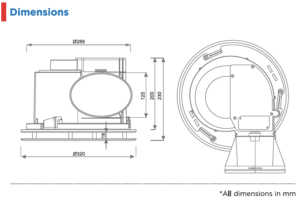

Headerbox_dimensions_iHVAC
