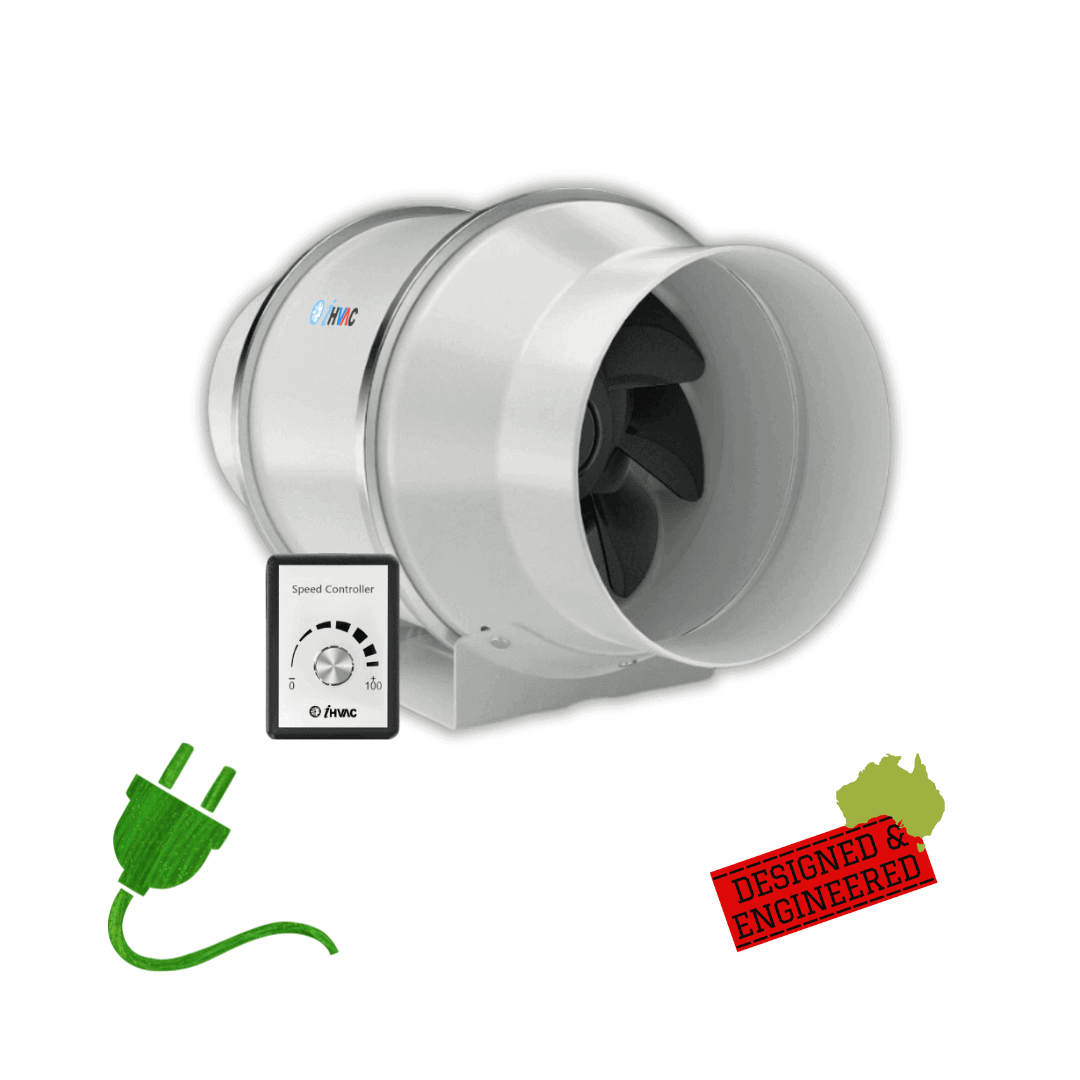

    Inline EC Timer

    Product Code: ILT-EC

    With a run-on timer option, our inline EC motor fans with built-in Speed Controller take efficiency and energy savings to the next level. Perfect for your heating or air-conditioning needs, our EC fans perform effortlessly and deliver high airflow and air pressure.

    Add To Quote
    • High efficiency and energy saving: Equipped with an EC variable frequency motor (permanent magnet synchronous motor) for lower energy consumption.
    • Meets NCC 2022 energy efficiency standards.
    • Built-in speed control: 0-10V voltage speed control and an adjustable knob PWM signal speed Control.
    • Stable performance: set with slow start, no influence during voltage fluctuation.
    • Long durability: low vibration, low noise and continuous operation.
    • Protection grade: IP44
    • Operation temperature range: -20℃ to 60℃

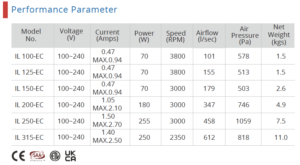

    Performance_InlineEC_iHVAC

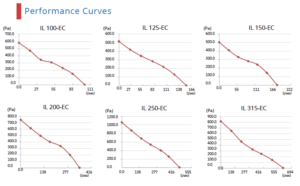

    Curves_InlineEC_iHVAC

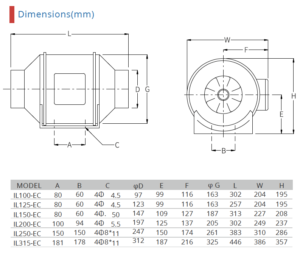

    Dimensions_InlineEC_iHVAC
